Compact Silo System for Ceramic & Stone Industrial Wastewater Treatment

The Growing Need for Effective Wastewater Management in Ceramic and Stone Industries

The ceramic and stone manufacturing sectors have long faced significant challenges in managing the substantial volumes of wastewater generated during production processes. Each day, these industries produce thousands of gallons of contaminated water containing suspended solids, heavy metals, and various chemical compounds that require treatment before discharge. A medium-sized ceramic tile facility can generate upwards of 5,000 gallons of wastewater daily—water that carries clay particles, glazing compounds, and other potentially harmful substances.

This reality has positioned wastewater management as not merely an environmental obligation but a critical operational concern. Traditional treatment systems, with their sprawling footprints and complex infrastructure requirements, have proven increasingly impractical for modern manufacturing facilities facing space constraints and stricter environmental regulations.

Enter the Compact Silo System for Ceramic & Stone Industrial Wastewater Treatment—a revolutionary approach that addresses these longstanding challenges through innovative engineering and space-efficient design. These systems represent a significant technological advancement, offering treatment capabilities comparable to much larger conventional systems while occupying a fraction of the physical space.

The evolution of these compact solutions hasn’t happened in isolation. According to industry experts at PORVOO, the development of more efficient treatment technologies has been driven by converging pressures: increasingly stringent environmental regulations, rising water costs, and the growing corporate commitment to sustainable manufacturing practices.

What makes these compact systems particularly suited to ceramic and stone production environments is their ability to handle the specific characteristics of this industry’s wastewater—high in suspended solids, variable in pH, and often containing trace amounts of metals from pigments and glazes. The treatment process must effectively address these challenges while maintaining the reliability needed for continuous industrial operations.

Understanding the Technology Behind Compact Silo Systems

At their core, compact silo systems represent a remarkable feat of engineering—consolidating multiple treatment stages into a vertical, space-efficient design. Unlike traditional horizontal treatment systems that require extensive floor space, these silo-based solutions utilize vertical space, making them ideal for facilities with limited square footage.

The treatment process typically begins with the collection of wastewater from various production points throughout the ceramic or stone manufacturing process. This wastewater enters the primary sedimentation chamber of the compact silo, where larger particulates begin to settle. The vertical design accelerates this process through what engineers call “gravity-assisted sedimentation,” where particles fall downward through conical chambers specifically designed to optimize the settling process.

“What separates modern compact systems from their predecessors is the integration of advanced flocculation technology directly into the silo structure,” explains Dr. Elizabeth Chen, an environmental engineer specializing in industrial wastewater treatment. “This allows for more efficient solid-liquid separation in a significantly reduced footprint.”

The flocculation process introduces carefully selected chemical agents that cause the suspended particles to clump together, forming larger, heavier flocs that settle more readily. This stage is particularly crucial for ceramic wastewater, which often contains fine clay particles that would otherwise remain suspended indefinitely.

Following flocculation and sedimentation, the partially clarified water moves to secondary treatment chambers within the same compact structure. Here, depending on the specific system design, additional processes may include:

• pH neutralization to adjust the water’s acidity or alkalinity
• Further filtration to remove remaining particulates
• Chemical treatment to address specific contaminants
• Dewatering of collected sludge for disposal or recycling

The integration of these processes into a single vertical structure represents the key innovation of compact silo systems. A treatment process that might have previously required several separate tanks spread across a large area is now contained within a unified silo system occupying minimal floor space.

Advanced models incorporate automated monitoring and control systems that continuously adjust treatment parameters based on incoming wastewater characteristics. This smart technology ensures optimal performance regardless of variations in the wastewater stream—a common occurrence in ceramic and stone manufacturing, where production processes may change throughout the day.

Historical Evolution of Wastewater Treatment in Ceramic Manufacturing

The approach to handling wastewater in ceramic and stone industries has undergone remarkable transformation over the decades. In the 1970s and early 1980s, many facilities employed primitive settling ponds or basic filtration systems that were largely ineffective at removing fine particles and dissolved contaminants. These rudimentary systems frequently failed to meet even the modest environmental standards of the time.

As regulatory frameworks tightened through the 1990s, the industry responded with more sophisticated treatment approaches. Large-scale horizontal clarifiers, multi-stage filtration systems, and chemical treatment facilities became standard. While effective, these systems required substantial space—often hundreds of square meters for a medium-sized production facility.

“I remember visiting ceramic factories in the early 2000s where the wastewater treatment area was nearly as large as the production floor itself,” recalls Marco Rossi, a ceramic industry sustainability consultant. “This represented not just a space issue, but a significant capital investment that smaller manufacturers struggled to finance.”

The development trajectory shifted dramatically in the mid-2000s with the introduction of the first vertically-oriented treatment systems. These early compact solutions demonstrated the potential of the silo approach, though they often lacked the automation and efficiency of today’s advanced systems.

Industry regulations have played a crucial role in driving this technological evolution. The implementation of stricter discharge limits for total suspended solids (TSS), biochemical oxygen demand (BOD), and heavy metals has necessitated more effective treatment solutions. Modern compact silo systems for ceramic and stone industrial wastewater treatment are designed specifically to meet or exceed these regulatory thresholds.

The contemporary regulatory landscape varies significantly by region, with European standards typically being the most stringent. For example, EU directives limit TSS in discharged water to 35 mg/L, while some North American jurisdictions may permit levels up to 50 mg/L. Modern compact systems are engineered to achieve consistent results well below 30 mg/L regardless of incoming wastewater quality.

This evolution hasn’t just been about regulatory compliance. Economic factors have played an equally important role, with water costs rising dramatically in many regions. The ability of compact silo systems to facilitate water recycling—often allowing 60-80% of process water to be returned to production—represents a compelling financial argument for their adoption.

Technical Specifications and Performance Metrics

The engineering specifications of compact silo systems reveal their remarkable efficiency compared to traditional treatment methods. These vertical structures typically range from 3 to 6 meters in height with diameters of 1.5 to 3 meters, depending on capacity requirements. Despite their relatively modest dimensions, these systems can process anywhere from 5 to 50 cubic meters of wastewater daily—sufficient for small artisanal operations to medium-sized industrial plants.

What truly distinguishes these systems is their treatment efficiency across various contaminant metrics, as illustrated in the comparative data below:

The technical architecture of these systems incorporates several key components, each serving specific functions in the treatment process:

1. Primary Settlement Chamber: Features inclined plates or tubes to accelerate particle settling through increased surface area
2. Flocculation Module: Utilizes precision dosing pumps to deliver optimal coagulant quantities based on real-time turbidity measurements
3. Sludge Concentration Zone: Incorporates progressive compression technology to achieve sludge with 25-35% solids content
4. Clarification Section: Employs lamella design principles for enhanced phase separation in minimal space
5. Control Systems: Integrates PLC-based automation with remote monitoring capabilities and predictive maintenance algorithms

Dr. James Thompson, who researches water treatment technologies at a leading technical university, notes: “What’s particularly impressive about the latest generation of compact systems is their adaptability to varying influent conditions. The integrated sensing and control systems can detect changes in wastewater characteristics and automatically adjust treatment parameters without operator intervention.”

This adaptability proves especially valuable in ceramic manufacturing, where wastewater composition may change significantly depending on production schedules. During glazing operations, for instance, wastewater typically contains higher concentrations of metal oxides and soluble compounds compared to the primarily clay-based waste generated during forming processes.

Modern compact systems employ multi-stage treatment approaches tailored to specific contaminant profiles found in ceramic and stone industries:

The space efficiency these systems achieve represents perhaps their most compelling advantage. A facility processing 20 cubic meters of wastewater daily might require only 15 square meters for a complete compact silo system—roughly one-eighth the space needed for conventional treatment technologies with equivalent capacity.

Implementation and Facility Integration Considerations

Implementing a compact silo system requires thoughtful planning and consideration of several facility-specific factors. Unlike traditional horizontal systems that can be extended incrementally as needed, vertical silo structures necessitate careful pre-installation analysis to ensure both immediate and future treatment requirements will be met.

The first consideration is vertical clearance. These systems typically require 4-7 meters of overhead space, which may present challenges in older industrial buildings with lower ceiling heights. During a recent facility assessment I conducted, we discovered that removing a non-structural mezzanine floor created sufficient vertical clearance while simultaneously freeing up valuable manufacturing space.

Structural requirements also merit careful evaluation. A fully operational compact silo system containing water and accumulated sludge may weigh between 10-30 tons depending on capacity. The facility floor must be capable of supporting this concentrated load—sometimes necessitating reinforcement of existing concrete slabs or specialized foundation work.

“When we evaluate a facility for system integration, we conduct a comprehensive structural analysis,” explains a senior installation engineer with extensive experience in these systems. “In some cases, we’ve recommended distributing the load across multiple smaller units rather than installing a single large system to accommodate structural limitations.”

The installation timeline typically follows this sequence:

1. Site Preparation: 5-10 days (includes foundation work if required)
2. System Delivery and Positioning: 1-2 days (may require specialized lifting equipment)
3. Mechanical Installation: 3-7 days (connecting piping, electrical, control systems)
4. System Testing: 2-4 days (without active wastewater)
5. Commissioning and Optimization: 7-14 days (with gradual introduction of process wastewater)

From initial planning to full operational status, facilities should anticipate a 4-8 week implementation period. This timeframe can extend when retrofitting existing facilities with complex production schedules that cannot be interrupted.

Maintenance requirements represent a significant operational consideration. While compact silo systems generally require less maintenance than traditional treatments, their integrated nature means that service access must be carefully planned. Modern designs incorporate strategic access points for critical components, but facilities must ensure adequate workspace around the system for maintenance activities.

Typical maintenance intervals include:

These maintenance requirements highlight one operational challenge: the need for specialized knowledge. While day-to-day operation is straightforward, facilities must invest in proper training for maintenance personnel or secure service contracts with qualified providers to ensure optimal system performance.

Space utilization remains the most compelling advantage. During a recent ceramic tile factory renovation, the replacement of a conventional treatment system with a compact silo solution freed up over a hundred square meters of floor space, which was repurposed for inventory storage—an estimated operational value of €75,000 annually in reduced off-site warehousing costs.

Real-World Applications: Case Studies and Performance Data

The true measure of any industrial technology lies in its performance under actual operating conditions. I’ve had the opportunity to observe several ceramic and stone manufacturing facilities that have implemented compact silo systems for their wastewater treatment needs, revealing both the potential benefits and practical challenges of this technology.

Case Study 1: Italian Porcelain Tile Manufacturer

A mid-sized porcelain tile producer in northern Italy faced increasing pressure from stricter EU water discharge regulations while simultaneously dealing with limited facility space. Their existing treatment system occupied nearly 200 square meters and struggled to meet the new 30 mg/L TSS discharge limits.

After installing a three-stage compact silo system occupying just 25 square meters, the facility achieved remarkable results:

• Consistent TSS readings below 15 mg/L (a 50% improvement)
• Water recycling rate increased from 45% to 78%
• Annual water consumption reduced by approximately 22,000 cubic meters
• Recovered floor space repurposed for finished product storage
• Energy consumption for wastewater treatment decreased by 42%

“The transition was not without challenges,” acknowledged the facility’s environmental manager. “We experienced an unexpected learning curve with the automated control systems, and it took nearly three months to optimize the chemical dosing for our specific wastewater characteristics.”

Despite these initial hurdles, the financial benefits proved substantial. The system achieved ROI within 2.3 years through combined water savings, reduced discharge fees, and reclaimed space value.

Case Study 2: Spanish Decorative Stone Processor

A decorative stone processing facility in Spain specialized in cutting and polishing marble and granite for architectural applications. Their cutting operations generated wastewater with extremely high solid content—sometimes exceeding 15,000 mg/L of suspended solids, primarily fine stone particles.

Their compact silo implementation featured a specialized pre-treatment stage specifically designed for ultra-high solid content:

• System processes 18 cubic meters of wastewater daily
• Achieves final TSS below 20 mg/L (99.9% removal efficiency)
• Recovers approximately 2.5 tons of stone slurry weekly, which is repurposed as raw material for concrete production
• Water recycling rate of 85% significantly reduced freshwater requirements
• Automated operation reduced labor costs by eliminating the need for a dedicated treatment operator

During my visit to this facility, I was particularly impressed by the quality of the recovered water. The clarity was indistinguishable from fresh supply water, despite having cycled through multiple cutting operations. The facility manager noted that tool life had actually improved since implementing the new system, attributing this to the superior water quality compared to their previous treatment method.

Case Study 3: North American Artisanal Ceramic Producer

Not all implementations involve large industrial operations. A smaller artisanal ceramic producer in North America (12 employees) installed a compact silo system scaled for their lower volume requirements:

• Single-unit system processing 3.5 cubic meters daily
• Footprint of just 5 square meters
• Semi-automated operation requiring minimal technical expertise
• Achieved compliance with local regulations that had previously resulted in penalty fees
• Simple “plug and play” installation completed in under two weeks

The owner shared an interesting observation: “Beyond the obvious environmental benefits, we’ve noticed our glazes perform more consistently since we started recycling our treated water. The mineral content in the recovered water actually enhances certain glaze characteristics in ways we didn’t anticipate.”

This unexpected quality improvement highlights how water treatment solutions can potentially contribute to product quality, not merely regulatory compliance.

Across these varied implementations, common themes emerge: significant space savings, improved water quality metrics, and substantial water recycling capabilities. However, each case also reveals the importance of proper system sizing and configuration to match specific operational requirements and wastewater characteristics.

Environmental Impact and Sustainability Benefits

The environmental advantages of compact silo systems extend well beyond their space-efficient design. Their implementation represents a significant step toward more sustainable manufacturing practices in the ceramic and stone industries, which have historically been associated with substantial environmental footprints.

Water conservation stands as perhaps the most immediate environmental benefit. Traditional ceramic manufacturing is notoriously water-intensive, with some processes consuming upwards of 10-15 liters of water per square meter of finished product. Advanced compact treatment systems enable water recycling rates of 70-85%, dramatically reducing fresh water consumption. A medium-sized tile factory implementing this technology might conserve 15,000-25,000 cubic meters of water annually—equivalent to the yearly household water usage of approximately 150 families.

“The water savings alone represent a substantial ecological benefit,” notes Dr. Chen, who has studied industrial water usage patterns extensively. “But equally important is the reduction in contaminated discharge to local waterways, which helps protect aquatic ecosystems from the harmful effects of suspended solids and process chemicals.”

This reduction in discharged contaminants is quantifiable across several key parameters:

The systems’ energy efficiency contributes further to their environmental credentials. The vertical configuration leverages gravity for much of the solid-liquid separation process, requiring significantly less pumping energy than traditional horizontal clarifiers. This design principle, combined with advanced motor efficiency and optimized process control, typically results in 40-60% energy savings compared to conventional treatment technologies.

Waste minimization represents another significant environmental advantage. The dewatering capabilities of modern compact systems produce sludge with higher solids content (typically 25-35% solids versus 10-15% in traditional systems), which not only reduces sludge volume but also facilitates beneficial reuse options. During a recent project assessment, I witnessed a ceramic manufacturer repurposing dewatered clay sludge as a raw material additive for lower-grade ceramic products, effectively creating a closed-loop system for their mineral waste.

This circular economy approach is gaining traction throughout the industry. Other innovative reuse applications for treated ceramic waste include:

• Incorporation into construction materials like bricks and concrete
• Use as soil amendments for specific agricultural applications
• Raw material for cement production
• Filler material for road construction

The reduction in chemical usage also merits attention. Advanced dosing systems and real-time monitoring in compact silos typically reduce flocculent and coagulant consumption by 20-30% compared to less sophisticated treatment approaches. This not only reduces the embedded carbon footprint of these chemicals but also minimizes the introduction of treatment chemicals into the environment.

When evaluating the complete environmental impact, the space efficiency itself provides additional sustainability benefits that are easily overlooked. By minimizing the treatment system’s footprint, manufacturers can optimize their existing facilities rather than expanding into undeveloped land. This reduces impervious surface area, preserves natural habitats, and makes more efficient use of industrial infrastructure.

Despite these substantial benefits, it’s important to acknowledge that even the most advanced systems have environmental limitations. No treatment technology eliminates 100% of contaminants, and the manufacturing process itself remains resource-intensive. However, compact silo systems represent a significant step toward mitigating these impacts while maintaining industrial productivity.

Future Directions in Compact Wastewater Treatment Technology

The evolution of compact silo systems for ceramic and stone wastewater treatment continues at a rapid pace, with several emerging technologies poised to further revolutionize this field. These innovations promise even greater efficiency, sustainability, and integration with broader industrial systems.

Advanced membrane technologies represent one of the most promising developments. Next-generation ultrafiltration and nanofiltration membranes are being incorporated into compact silo designs to achieve unprecedented water quality levels. These technologies can remove particles as small as 0.001 microns—far smaller than conventional filtration methods can achieve. This enables water recycling for even the most sensitive production processes, including high-end glazing applications where water purity directly impacts product quality.

“We’re seeing ceramic manufacturers adopt these advanced filtration technologies to achieve closed-loop water systems with near-zero discharge,” explains a wastewater treatment engineer who specializes in membrane applications. “The compact footprint of these membrane modules makes them ideal for integration within the existing silo structure.”

Artificial intelligence and machine learning algorithms are transforming system control and optimization. Rather than relying on fixed treatment parameters, these smart systems continuously analyze influent characteristics and adjust treatment protocols in real-time. During a demonstration of this technology, I observed a system that detected subtle changes in incoming wastewater composition and preemptively adjusted flocculent dosing before conventional sensors would have detected a problem.

This predictive capability extends to maintenance as well. Advanced analytics can identify patterns that precede component failure, allowing for scheduled maintenance before unexpected downtime occurs. One manufacturer reported a 78% reduction in unplanned maintenance interruptions after implementing these predictive systems.

Energy self-sufficiency represents another frontier in this technology’s development. Experimental systems are incorporating energy recovery components that harvest heat from the wastewater stream or utilize the hydraulic potential of water moving through the system. While still in early stages, these innovations point toward treatment systems that may eventually operate with minimal external energy input.

Integration with broader Industry 4.0 initiatives is perhaps the most transformative trend. Modern compact treatment systems are increasingly designed as nodes within connected factory environments. This connectivity enables:

• Coordination between production schedules and treatment capacity
• Real-time water quality data sharing with production systems
• Automated adjustment of water recycling rates based on production requirements
• Integration with enterprise resource planning systems for chemical inventory management
• Remote monitoring and troubleshooting capabilities

Looking further ahead, modular design approaches are making these systems more adaptable to changing requirements. Rather than replacing entire treatment plants as needs evolve, manufacturers can add or reconfigure components to address specific treatment challenges or capacity requirements.

Several research institutions are exploring novel biological treatment methods specifically designed for vertical integration within compact silos. These include specialized biofilm reactors that can break down organic contaminants common in ceramic processing while occupying minimal space within the treatment system.

Of particular interest is the development of advanced ceramic and carbon-based filtration media manufactured from the very waste streams these systems process. This circular approach could transform treatment byproducts into valuable filtration materials with superior performance characteristics.

While tremendous progress continues, challenges remain in achieving truly universal treatment solutions. The variability in ceramic and stone manufacturing processes creates equally variable wastewater streams, requiring treatment systems with exceptional adaptability. The most successful future technologies will likely combine multiple treatment modalities within unified compact platforms, capable of addressing diverse contaminant profiles while maintaining simplicity of operation.

As one industry expert aptly observed: “The future of industrial wastewater treatment isn’t just about doing the same things more efficiently—it’s about fundamentally rethinking the relationship between production processes and water management.” Compact silo systems represent an important step in this direction, but the integration of these emerging technologies promises to take this approach to entirely new levels of performance and sustainability.

Making the Right Choice for Your Facility

Selecting the optimal wastewater treatment solution for ceramic and stone manufacturing operations requires careful consideration of numerous factors beyond simply meeting regulatory requirements. The decision carries significant implications for operational efficiency, environmental performance, and long-term financial outcomes.

When evaluating compact silo systems against traditional alternatives, facility managers should conduct a comprehensive assessment that includes:

Current and Future Treatment Requirements: Regulatory standards continue to evolve, often becoming more stringent over time. The selected system should not merely meet today’s discharge limits but possess the adaptability to accommodate future regulatory changes. During facility assessments, I’ve often recommended systems with treatment capabilities exceeding current requirements by 15-20% to provide this regulatory buffer.

Space Utilization Value: The floor space saved through compact vertical systems has real economic value that should be quantified in any comparison. This value varies dramatically between facilities and locations—from €300 per square meter annually in some regions to over €1,000 in high-cost manufacturing areas. This “opportunity cost” of space deserves careful consideration in ROI calculations.

Water Costs and Availability: Regional variations in water pricing and availability significantly impact the financial calculus. In water-stressed regions where costs exceed €2 per cubic meter, the recycling capabilities of advanced compact systems can drive remarkably short payback periods—sometimes under 18 months. Conversely, in regions with abundant, low-cost water, the environmental benefits may outweigh direct financial returns.

Operational Integration: The selected system must integrate seamlessly with existing production processes. This includes considerations such as:

• Location relative to wastewater generation points
• Compatibility with existing piping infrastructure
• Integration with current control systems
• Impact on production during installation and commissioning

Maintenance Capabilities: Even the most advanced system will perform poorly without proper maintenance. An honest assessment of in-house technical capabilities should influence system selection. Facilities with limited technical staff might prioritize systems with comprehensive service contracts or simpler maintenance requirements, even if they don’t offer the absolute highest performance specifications.

The decision-making process should involve key stakeholders from operations, maintenance, environmental compliance, and financial departments. This cross-functional approach helps ensure all relevant factors are considered.

When calculating return on investment, consider both direct and indirect benefits:

The implementation timeline also warrants careful planning. Many facilities find value in phased approaches—beginning with core treatment components and adding enhanced capabilities (advanced filtration, heat recovery, etc.) in subsequent phases as budgets permit.

Finally, conducting thorough reference checks with existing users of prospective systems provides invaluable real-world insights beyond manufacturer specifications. During these conversations, focus not just on treatment performance but on the entire ownership experience—installation challenges, operational reliability, manufacturer support, and unexpected benefits or complications.

The optimal solution will always be facility-specific, balancing technical performance, financial considerations, and operational realities. However, the compact nature of modern silo-based systems makes them increasingly the preferred choice across diverse ceramic and stone manufacturing operations—from artisanal workshops to industrial-scale production facilities. Their ability to deliver exceptional treatment performance while minimizing spatial requirements represents a compelling value proposition in an industry where both environmental responsibility and operational efficiency have become non-negotiable requirements.

Frequently Asked Questions about Compact Silo System for Ceramic & Stone Industrial Wastewater Treatment

Q: What is a Compact Silo System for Ceramic & Stone Industrial Wastewater Treatment?
A: A Compact Silo System for Ceramic & Stone Industrial Wastewater Treatment is a modern, advanced technology designed to efficiently manage and treat industrial wastewater generated from various processes in the ceramic and stone industries. This system integrates multiple stages of wastewater treatment, such as sedimentation, concentration, and filter pressing, into a compact and automated setup. It minimizes land usage, reduces energy costs, and ensures a clean and safe treatment process, making it ideal for businesses seeking cost-effective and environmentally friendly solutions.

Q: How does a Compact Silo System improve wastewater treatment efficiency compared to traditional systems?
A: The Compact Silo System enhances wastewater treatment efficiency by simplifying the process and automating control systems, which significantly reduces labor costs and chemical consumption. It uses less land compared to traditional systems and provides better recycling water quality. Additionally, the closed pipeline connection and fully automated operation ensure a clean site environment, aligning with environmental regulations and reducing operational expenses.

Q: What industries can benefit from using a Compact Silo System for wastewater treatment?
A: The Compact Silo System for Ceramic & Stone Industrial Wastewater Treatment is beneficial for various industries, including:

• Ceramics Industry: For treating wastewater from ceramic production lines.
• Stone Industry: Helps manage water used in stone carving and polishing processes.
• Glass Industry: Assists in managing industrial water waste from glass manufacturing.
• Mining and Minerals: Useful for treating waters in coal washing and sand washing operations.

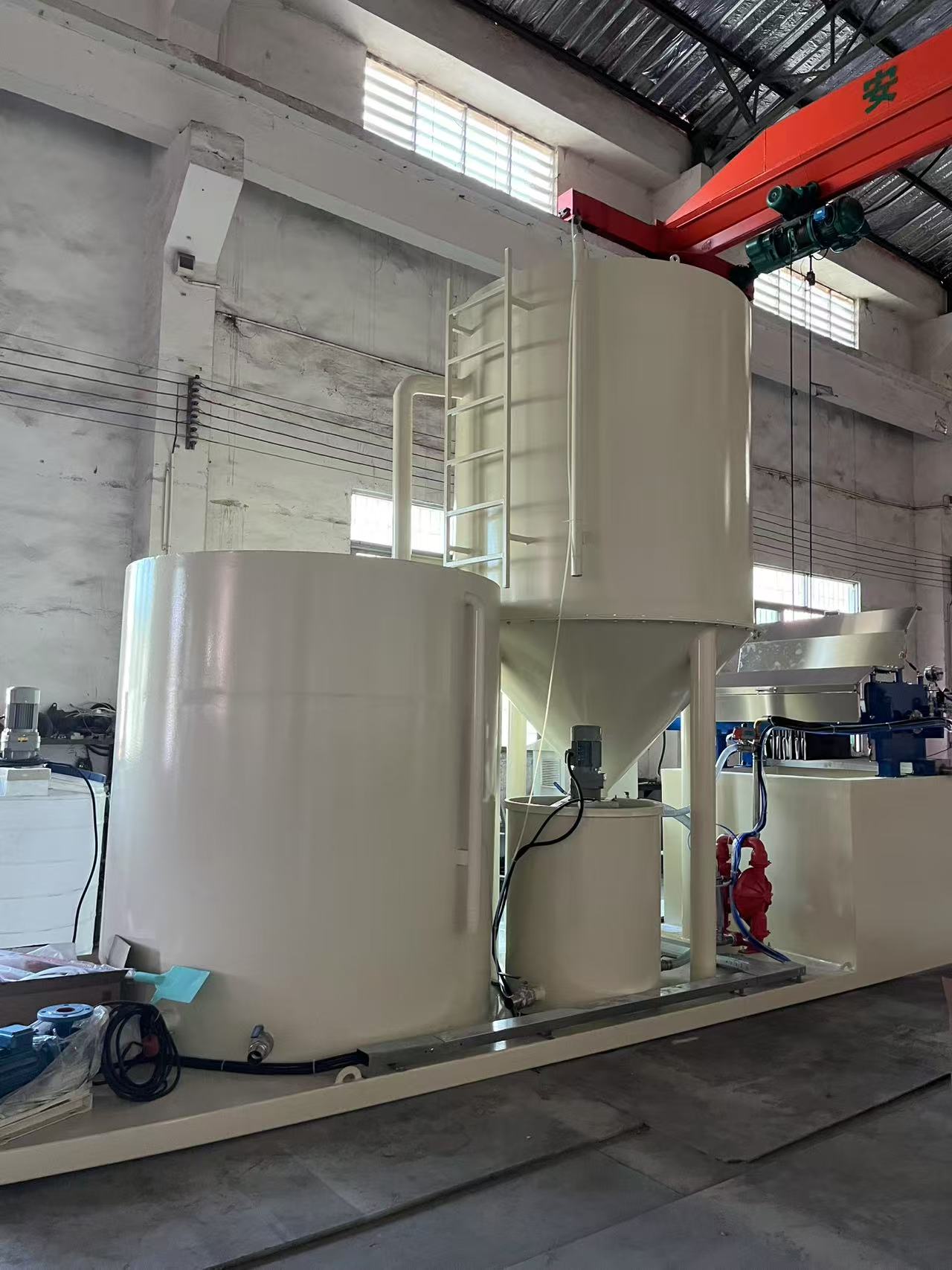

Q: What are the main components of a Compact Silo System for wastewater treatment?
A: A Compact Silo System typically includes components like:

• Wastewater Silo: Where wastewater is treated using chemical dosing and sedimentation.
• Clean Water Tank: Stores treated water for reuse.
• Chemical Dosing Pump: Adds chemicals to facilitate flocculation.
• Filter Press: Removes sludge and produces dry filter cakes.
• Electrical Control Panel: Manages the entire process automatically.

Q: What environmental benefits does a Compact Silo System offer?
A: The Compact Silo System provides several environmental benefits, including minimizing water waste by recycling up to 98% of the water used in industrial processes. It reduces the need for chemical additives and decreases the footprint required for treatment facilities, making it an environmentally friendly solution. Additionally, it ensures that the treated water meets environmental regulations, reducing pollution and enhancing sustainability in industrial operations.
