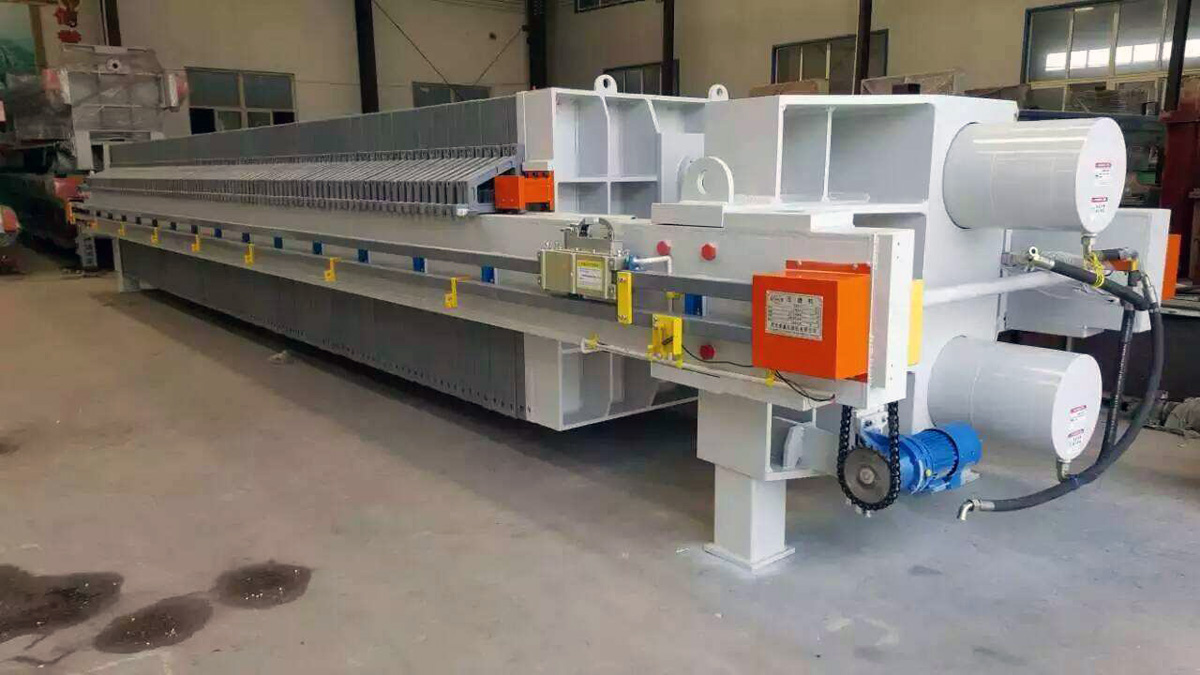

Plate and frame filter press

Introduction to Plate and Frame Filter Press Technology

The evolution of industrial filtration has been marked by continuous innovation, with the plate and frame filter press standing as one of the most enduring and reliable technologies. During a recent visit to a wastewater treatment facility in the Midwest, I was struck by the seemingly simple yet remarkably effective design of these systems—solid metal frames housing compressed filter plates that perform the critical task of separating solids from liquids across countless industrial applications.

What makes the plate and frame filter press particularly fascinating is how it has maintained its fundamental design principles while incorporating modern materials and automation. The technology dates back to the early 19th century, yet continues to prove indispensable in today’s highly sophisticated manufacturing environments. The basic concept involves suspending filter cloth between alternating plates and frames, creating chambers where pressure forces liquid through while retaining solids.

The brilliance of this filtration method lies in its versatility. Whether processing mining slurries with high solid content or clarifying pharmaceutical solutions requiring absolute purity, the fundamental principle remains unchanged—pressure-driven separation that effectively creates a “filter cake” of solids while allowing filtered liquid to pass through.

My conversations with operators across various industries reveal a common theme: despite newer technologies entering the market, plate and frame filter presses continue to deliver exceptional reliability and effectiveness. Companies like PORVOO have further refined these systems, incorporating advances in materials science and automation while maintaining the robust simplicity that makes this technology so dependable.

The global market for these filtration systems continues to expand, particularly as industries face increasing regulatory pressure to improve wastewater management and reduce environmental impact. The ability of plate and frame filter presses to achieve high levels of solid-liquid separation efficiency while handling variable feed compositions makes them particularly valuable in today’s manufacturing landscape.

Understanding the Mechanics and Components

The effectiveness of a plate and frame filter press stems from its relatively straightforward mechanical design, though the engineering precision behind modern systems should not be underestimated. Having examined dozens of these systems across different industries, I’ve developed an appreciation for how each component contributes to the overall filtration process.

At its core, the system consists of three primary components: filter plates, frames, and filter cloth. The plates typically feature a raised pattern on their surface that supports the filter cloth while allowing filtered liquid (filtrate) to flow toward discharge ports. The frames, positioned between plates, create chambers where the solid material (filter cake) accumulates during filtration.

The filter cloth serves as the actual filtration medium and deserves special attention. These cloths are manufactured from various materials depending on application requirements:

The assembly of these components creates alternating chambers throughout the press. When the system operates, slurry enters these chambers under pressure, forcing liquid through the filter cloth while solids accumulate within the chambers. The filtration cycle continues until the chambers are filled with solids to a predetermined level, at which point the press is opened for cake discharge.

Modern plate and frame filter presses feature several key technical specifications that determine their performance characteristics:

• Chamber volume: Typically ranging from 20 to 2000 liters, determining batch size
• Operating pressure: Generally between 7-15 bar (100-220 psi), though some high-performance systems can operate at higher pressures
• Filtration area: From less than 1 m² for laboratory units to over 1000 m² for industrial applications
• Cake thickness: Usually between 15-50 mm, affecting cycle time and moisture content

The interaction between these specifications creates a highly customizable filtration solution. The flexibility in configuration explains why this technology remains relevant across so many industries—from mining operations processing tons of slurry hourly to pharmaceutical manufacturers requiring precise separation of high-value products.

Advanced Features and Modern Innovations

The fundamental design of plate and frame filter presses may be centuries old, but today’s systems incorporate sophisticated features that dramatically improve performance, efficiency, and operator experience. During a technical symposium last year, I was particularly impressed by the integration of digital control systems that have transformed these mechanical workhorses into smart filtration platforms.

Automation has revolutionized filter press operation. Modern presses now feature programmable logic controllers (PLCs) that manage every aspect of the filtration cycle—from initial filling to final cake discharge. These systems continuously monitor parameters like pressure differential, flow rate, and cycle time, making real-time adjustments to optimize performance. The days of operators manually checking filter cake consistency are increasingly behind us.

One particularly notable innovation has been the development of membrane squeeze systems. These incorporate an elastic diaphragm within each chamber that can be inflated at the end of the filtration cycle to apply additional pressure to the filter cake, reducing moisture content significantly. A process manager at a large ceramic materials producer told me this technology had reduced their dried product weight by nearly 15%, with corresponding energy savings in their downstream drying process.

Material advancements have similarly transformed filter press capabilities. High-performance polymers and composites now offer alternatives to traditional cast iron or steel construction, reducing weight while improving corrosion resistance. I’ve seen impressive demonstrations of polypropylene plates that withstand highly aggressive chemical environments where metal components would rapidly deteriorate.

Energy efficiency improvements deserve particular attention. Modern designs incorporate features like:

• Variable frequency drives that adjust pump speed based on filtration resistance
• Advanced seal designs that minimize pressure losses
• Optimized feed channel geometries that reduce pumping requirements
• Heat recovery systems for applications requiring elevated temperatures

Safety enhancements represent another critical area of development. Today’s systems include multiple redundant safety interlocks, hydraulic protection systems, and emergency shutdown capabilities. The fully enclosed designs of premium models eliminate exposure to potentially hazardous materials during operation.

What I find particularly promising is the integration of predictive maintenance capabilities. Advanced sensors monitor system performance and component wear, alerting operators before failures occur. One maintenance engineer shared that their downtime had decreased by over 40% after implementing a system that could predict filter cloth deterioration before it affected product quality.

Industry-Specific Applications and Case Studies

The versatility of plate and frame filter press technology becomes most apparent when examining its implementation across diverse industries. Each sector leverages the fundamental solid-liquid separation capability while adapting the technology to meet unique processing requirements.

Wastewater Treatment Successes

Municipal wastewater facilities represent one of the most visible applications of filter press technology. A treatment plant in the Pacific Northwest recently upgraded from belt presses to a plate and frame system, achieving remarkable results. Their new 1500 mm plates with membrane squeeze capability reduced sludge volume by approximately 40% compared to their previous process, significantly decreasing disposal costs while producing drier cake that qualified as Class A biosolids, opening new beneficial reuse opportunities.

The system’s ability to handle variable input conditions proved particularly valuable during seasonal population fluctuations in this tourist region. The automated operation adjusted parameters based on incoming sludge characteristics, maintaining consistent output quality despite input variations of up to 30% in solid content.

Mining and Mineral Processing

The mining sector demonstrates how filter presses can handle extremely demanding applications. During a site visit to a copper processing operation, I observed a massive filter press installation with 2.5-meter plates processing tailings at rates exceeding 500 tons per day. The recovered water—approximately 85% of the input volume—is recycled back into the processing circuit, dramatically reducing fresh water requirements in an arid region where water conservation is critical.

What impressed me most was the system’s durability. Despite processing highly abrasive material, the specialized filter cloths were achieving service lives of 4-5 months through careful material selection and automated cloth washing systems. The cake discharge—containing valuable metal content below 10% moisture—was directly transportable for secondary processing without additional drying.

Food and Beverage Industry

In contrast to these heavy industrial applications, food processing demonstrates the technology’s versatility in handling delicate, high-value products. A fruit juice processor implemented a specialized filter press system with polypropylene plates and FDA-approved filter media to clarify premium juices:

The system’s enclosed operation maintained product integrity while eliminating exposure to oxidation, preserving flavor profiles that had previously been compromised during processing. The plant manager noted that the investment paid for itself in less than 14 months through improved yield and reduced labor costs.

Pharmaceutical Applications

Perhaps the most demanding applications occur in pharmaceutical manufacturing, where absolute purity and documentation are essential. A specialized plate and frame system processing active pharmaceutical ingredients demonstrated remarkable capabilities:

• 316L stainless steel construction with electropolished surfaces
• Automated clean-in-place systems achieving sanitization between batches
• Complete data logging for regulatory compliance
• Capability to process both aqueous and solvent-based slurries
• Hermetically sealed operation preventing environmental contamination

These applications highlight why plate and frame technology continues to thrive—its fundamental principles can be adapted to extraordinarily diverse processing requirements while delivering reliable performance even under the most demanding conditions.

Technical Considerations and Operation Best Practices

Selecting the optimal filter press configuration requires careful consideration of multiple factors beyond simple throughput requirements. During my conversations with process engineers, several critical decision points consistently emerge that determine long-term operational success.

Feed material characteristics fundamentally drive system design. Particle size distribution, solids concentration, pH, temperature, and chemical composition all influence component selection. One chemical processing facility learned this lesson the hard way when their aggressive slurry rapidly degraded standard filter plates, requiring a costly retrofit with specialized materials.

The selection decision matrix typically includes:

Once the system is properly specified, maintenance becomes the critical factor in sustained performance. Proper care of filter cloths deserves particular attention. A systematic approach should include:

1. Regular inspection for tears, wear points, or blinding
2. Scheduled cleaning cycles based on material characteristics
3. Proper storage of spare cloths to prevent degradation
4. Documentation of cloth performance to optimize replacement intervals

Feed pump selection and maintenance also significantly impact system performance. Positive displacement pumps—typically progressive cavity or diaphragm designs—provide the most consistent results for most applications. However, their maintenance requirements can be substantial. A maintenance technician at a large industrial facility shared that their quarterly pump inspection program had reduced unplanned downtime by over 60%.

Optimizing cycle times represents another opportunity for performance improvement. The traditional approach of running fixed-time cycles often leaves efficiency on the table. Modern systems can monitor pressure differential across the filter cake to determine optimal cycle endpoints automatically. One operation I consulted with increased their daily throughput by 22% simply by implementing dynamic cycle timing rather than fixed intervals.

Temperature control deserves consideration, particularly for temperature-sensitive materials. While many processes operate at ambient conditions, maintaining consistent temperature can dramatically improve filtration rates and cake uniformity. Installing simple jacketed feed lines made a substantial difference for one seasonal operation dealing with wide ambient temperature fluctuations.

Finally, proper operator training remains critical despite increased automation. The most sophisticated systems still benefit from knowledgeable oversight. Regular training refreshers on troubleshooting procedures, safety protocols, and performance optimization techniques ensure the technology delivers its full potential.

Environmental and Economic Benefits

The environmental advantages of plate and frame filter press technology have become increasingly valuable as industries face stricter regulatory requirements and sustainability goals. The system’s ability to achieve high levels of solid-liquid separation directly translates to meaningful environmental benefits that also deliver economic advantages.

Water recovery represents perhaps the most significant environmental contribution. A mining operation I consulted with achieved water recycling rates exceeding 90% through effective filtration, dramatically reducing freshwater withdrawal from local sources. This not only decreased their environmental footprint but also substantially reduced water acquisition and treatment costs—approximately $430,000 annually in their case.

Waste volume reduction similarly delivers dual benefits. By producing drier filter cake (typically 20-30% moisture compared to 70-80% in unprocessed sludge), the technology significantly reduces disposal volumes. A medium-sized industrial processor shared their experience:

“We were sending 12-14 trucks of liquid waste to landfill monthly. After installing our filter press system, we’re down to 3-4 trucks of solid filter cake. The disposal cost savings alone are covering our leasing payment, not even counting the reduced environmental impact.”

The economic case becomes even more compelling when considering the potential value of recovered materials. Several operations have transformed what were previously waste streams into marketable byproducts:

• A food processor now sells filtered organic solids as agricultural soil amendments
• A chemical manufacturer recovers catalyst materials worth thousands per batch
• A metal plating operation captures and recycles valuable metals from wastewater

Energy efficiency considerations also factor into both environmental and economic equations. Mechanical dewatering via filter presses typically requires significantly less energy than thermal drying processes. One paper manufacturer calculated an 82% reduction in energy consumption compared to their previous rotary drum drying process, with proportional decreases in carbon emissions.

The overall return on investment calculation involves multiple factors:

For most implementations, payback periods of 12-36 months are typical, though I’ve documented cases achieving ROI in as little as 6 months when replacing particularly inefficient processes or where recovered materials have high value.

The economic case becomes even stronger when considering potential regulatory compliance issues. As one environmental manager put it: “The cost of our filter press system was substantial, but a fraction of what we faced in potential fines and remediation costs if we continued with our previous inadequate treatment process.”

Limitations and Challenges

While plate and frame filter presses offer numerous advantages, an honest assessment must acknowledge certain limitations. Understanding these challenges helps set realistic expectations and determines when alternative technologies might be more appropriate.

The batch nature of the process presents inherent throughput limitations. Despite automation improvements, the cycle of filling, pressing, and cake discharge creates operational bottlenecks that continuous filtration systems avoid. During peak production periods, this can create processing delays. A manufacturing engineer at a specialty chemicals company described their solution: “We ultimately installed a second smaller press specifically to handle surge capacity during production peaks rather than oversizing our main system that would be underutilized most of the time.”

Certain materials present particular filtration challenges. Very fine particles can rapidly blind filter media, dramatically reducing filtration rates and increasing operating costs through frequent cloth replacement. Similarly, highly compressible materials may form impermeable cakes that resist further dewatering regardless of applied pressure. I’ve observed facilities attempting to process such materials becoming frustrated with filtration rates 50-75% below vendor projections.

This table summarizes particularly challenging materials:

The physical footprint requirement presents another limitation, particularly in facilities where space is at a premium. Large industrial systems can occupy substantial floor space and require appropriate structural support. During a recent plant retrofit project, we ultimately selected an alternative technology despite filter presses offering better performance simply because the available space couldn’t accommodate the system dimensions.

Initial capital investment can present a significant barrier, particularly for smaller operations. While operating costs are generally favorable and long-term economics compelling, the upfront expenditure can be substantial. As one operations manager commented: “We knew the filter press would save us money over time, but getting approval for the capital expenditure took nearly two years of presentations and ROI calculations.”

Maintenance requirements, while not excessive, demand attention and expertise. Filter cloth replacement represents the most common maintenance activity, but hydraulic systems, plate warranties and gaskets also require regular inspection and occasional replacement. Facilities lacking appropriate maintenance capabilities may struggle to keep systems operating at peak performance.

Finally, the technology has limitations in handling extremely high-volume, very dilute streams where other technologies like clarifiers may be more cost-effective as a first-stage separation. Most successful implementations involve either moderate volumes or streams with higher solid content where the filter press’s dewatering capabilities provide maximum benefit.

Understanding these limitations doesn’t diminish the technology’s value but helps ensure it’s applied in appropriate scenarios where its strengths can be leveraged while mitigating potential weaknesses.

Future Trends and Emerging Technologies

The future development of plate and frame filter press technology reflects broader industrial trends toward digitalization, sustainability, and process intensification. Several emerging directions particularly stand out based on recent industry developments and research initiatives.

Digital transformation is perhaps the most significant near-term evolution. The integration of IoT sensors throughout modern filter press systems enables unprecedented monitoring capabilities. These smart systems collect performance data across hundreds of parameters—pressure distributions, flow rates, cake formation patterns, and even vibration signatures that might indicate developing mechanical issues.

What makes this particularly valuable is the application of machine learning algorithms to this rich operational data. During a recent technology demonstration, I was impressed by a system that could predict optimal cycle endpoints based on feed characteristics, potentially increasing daily throughput by 15-20% through dynamic cycle optimization. Another manufacturer showcased predictive maintenance capabilities that identified filter cloth degradation patterns before they affected product quality.

Material science advancements continue to enhance performance capabilities. New composite materials for plates offer improved pressure tolerance while reducing weight. A research team I spoke with is developing a carbon-fiber reinforced polymer plate design that maintains rigidity at pressures exceeding 20 bar while weighing approximately 40% less than comparable metal plates—potentially transforming high-pressure applications.

Filter media technology is similarly advancing. Next-generation synthetic fibers featuring nanoscale surface modifications demonstrate remarkable improvements in both filtration efficiency and cake release properties. One particularly promising development involves photocatalytic filter cloths that can self-clean when exposed to specific light frequencies, potentially extending service life dramatically.

Energy efficiency remains a central focus of ongoing development efforts. Beyond the previously mentioned variable frequency drives, newer systems incorporate energy recovery mechanisms that capture pressure energy during the filtration cycle and redirect it to subsequent operations. One manufacturer estimates these systems can reduce energy consumption by 25-30% in typical applications.

Sustainability considerations are driving several interesting innovations. Fully electric press drive systems are replacing traditional hydraulic systems in some applications, eliminating hydraulic fluid concerns while improving energy efficiency. Bio-based filter media manufactured from renewable resources offer promising alternatives to synthetic options for compatible applications.

Process intensification approaches seek to combine multiple operations within the filter press itself. Advanced designs now integrate washing, drying, and even reaction capabilities directly within the filter chambers:

• Counter-current washing systems that achieve 95%+ soluble contaminant removal
• Low-temperature vacuum drying capabilities within the press chambers
• Catalyst-impregnated filter media that perform reactions during filtration

Miniaturization represents another interesting development direction. While industrial systems continue to grow larger, there’s parallel development of compact, modular systems designed for distributed processing applications. These smaller units offer advantages in pharmaceutical, specialty chemical, and pilot operations where flexibility and rapid deployment outweigh economies of scale.

The market trajectory suggests continued growth, with particular expansion in emerging economies where water scarcity and environmental regulations are driving adoption. A recent industry analysis projected 5.8% CAGR through 2027, with especially strong growth in mining, chemical processing, and wastewater treatment applications.

As industries continue pursuing sustainability goals and regulatory requirements become more stringent, the demand for efficient solid-liquid separation technologies will likely accelerate further. The filter press’s fundamental advantages in achieving high separation efficiency while minimizing energy and chemical inputs position it well to meet these emerging needs.

Conclusion and Future Outlook

The plate and frame filter press represents a remarkable example of technological longevity through continuous adaptation. Its fundamental principles have remained largely unchanged for generations, yet ongoing innovations in materials, controls, and system integration ensure it remains relevant for contemporary processing challenges.

The primary strengths of this technology—reliable solid-liquid separation with high removal efficiency and dry solids production—align perfectly with growing industrial priorities around water conservation, waste minimization, and resource recovery. These advantages explain why filter presses continue to find new applications despite being considered “mature” technology.

Speaking with industry veterans, a common theme emerges regarding equipment selection: newer isn’t always better. As one plant manager with over 30 years of experience told me, “We’ve tried several ‘next-generation’ separation technologies over the years. Most ended up being replaced with filter presses because they simply work, day in and day out, with minimal fuss.” This reliability factor shouldn’t be underestimated when evaluating filtration options.

That said, proper implementation requires careful consideration of material characteristics, process requirements, and operational constraints. The technology isn’t universally applicable, and alternative approaches may prove more suitable for certain applications—particularly very high-volume, low-solid-content streams or materials with challenging filtration properties.

The economic case for filter press technology continues to strengthen as environmental regulations tighten and resource costs increase. The ability to recover water, capture valuable materials, and minimize waste volumes delivers increasingly significant financial benefits beyond the immediate operational advantages.

Looking ahead, I expect continued evolution rather than revolution in this technology space. Advances in automation, materials science, and digital integration will enhance performance and expand suitable applications, but the fundamental mechanical principles will likely persist. The proven reliability of these systems, combined with their minimal chemical and energy requirements, positions them well for a future increasingly focused on sustainable manufacturing practices.

For operations considering filtration technology options, my recommendation is straightforward: don’t overlook this proven approach based simply on its long history. Modern plate and frame filter presses combine centuries of practical refinement with cutting-edge materials and controls, offering solutions that few other technologies can match for solid-liquid separation challenges.

The plate and frame filter press may lack the glamour of newer technologies, but its continued relevance speaks to a fundamental truth in industrial processing: effective simplicity often outperforms complex sophistication in the demanding environment of day-to-day operations.

Frequently Asked Questions of Plate and Frame Filter Press

Q: What is a plate and frame filter press, and how does it work?
A: A plate and frame filter press is a type of equipment used for solid-liquid separation. It consists of a series of rectangular plates and frames stacked vertically. The plates have filter cloths attached, which allow liquids to pass through while trapping solids. During operation, a liquid slurry is pumped into the chambers between the plates and frames. The hydraulic or manual closing mechanism presses the plates together, forcing the liquid through the filter cloths and collecting the filtrate.

Q: What are the main components of a plate and frame filter press?
A: The main components of a plate and frame filter press include the frame, which supports the plates; filter cloths or papers attached to the plates; filter plates, typically made of materials like polypropylene or metal; and hydraulics, which manage the pressure and fluid flow. These components work together to ensure efficient solid-liquid separation.

Q: What are the advantages of using a plate and frame filter press?
A: The advantages of using a plate and frame filter press include:

• High filtration efficiency: Effective removal of solid particles from liquids.
• Scalability: Available in a variety of sizes to suit different processing needs.
• Versatility: Compatible with various filter cloths and applications.
• Easy cleaning: Plates and frames are simple to clean, making them suitable for frequent cleaning applications.
• Low operating costs: Economical choice due to reduced maintenance and energy requirements.

Q: What industries commonly use plate and frame filter presses?
A: Plate and frame filter presses are used in a wide range of industries, including:

• Municipal wastewater treatment
• Food and beverage processing
• Chemical processing
• Mining
• Industrial wastewater treatment
• Metal finishing
  Their versatility makes them suitable for various applications requiring solid-liquid separation.

Q: How do you maintain and troubleshoot a plate and frame filter press?
A: Maintaining a plate and frame filter press involves regular cleaning of filter cloths and monitoring hydraulic pressure to prevent plate deformation. Troubleshooting often involves checking for issues like edge leaking due to poor filtrate discharge piping or incorrect filter cloth selection. It’s also important to ensure even chamber filling to extend the life of the filter elements. Proper maintenance and troubleshooting help optimize filtration efficiency and extend equipment lifespan.
