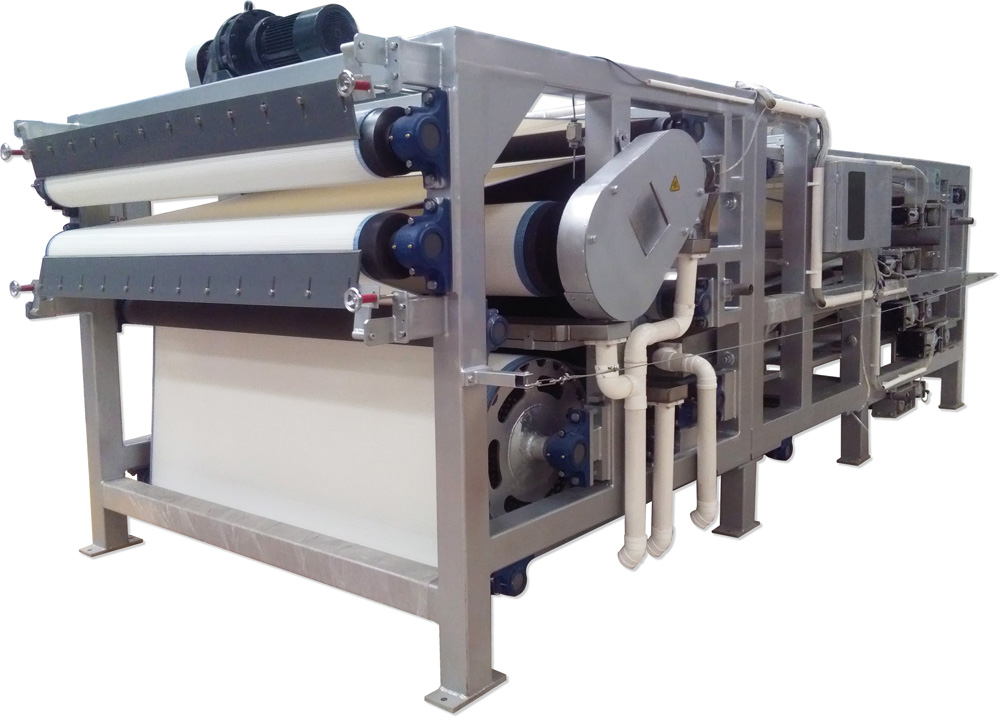

Belt filter press (BFP)

Understanding Belt Filter Presses: An Essential Dewatering Technology

Belt filter presses represent a cornerstone technology in mechanical dewatering processes. These machines use the principles of gravity drainage, pressure, and shear forces to remove water from sludge and slurries, transforming unwieldy, high-moisture waste into manageable, drier solids. This dewatering process stands as a critical step in numerous treatment applications, significantly reducing waste volume, transportation costs, and disposal challenges.

The evolution of belt filter press technology spans several decades, with continuous refinements in design, materials, and automation. Early versions emerged in the 1970s as alternatives to vacuum filters and centrifuges, offering advantages in energy efficiency and operational simplicity. Today’s modern BFPs bear little resemblance to these original models, having undergone substantial engineering improvements to enhance performance, reliability, and control systems.

At its core, a belt filter press employs a relatively straightforward concept: sludge is sandwiched between two tensioned filter belts that pass through a series of rollers, progressively squeezing out water as pressure increases. However, this simplicity belies the sophisticated engineering that makes these machines effective across diverse applications – from municipal wastewater treatment to food processing, paper production, and mining operations.

The effectiveness of a BFP depends on multiple factors, including proper chemical conditioning of incoming sludge, belt tension, speed settings, and regular maintenance. When optimized, these systems can achieve dry solids content ranging from 15% to over 30%, depending on the feed material characteristics—a substantial improvement over the typical 1-5% solids content in raw sludge.

PORVOO and other manufacturers have made significant advances in BFP technology, focusing on improving dewatering efficiency while reducing operational costs and environmental footprint. These innovations address historical limitations while expanding the versatility of belt filter presses across diverse industrial applications.

The Mechanics Behind Belt Filter Press Operation

A belt filter press operates through a series of distinct zones, each performing a specific function in the progressive dewatering process. Understanding these zones provides insight into why this technology remains indispensable in numerous industries despite the emergence of alternative dewatering methods.

The process typically begins in the chemical conditioning zone, where polymers or coagulants are mixed with incoming sludge. This critical pre-treatment step destabilizes suspended particles and promotes flocculation—essentially creating larger particles that release water more readily. The effectiveness of this conditioning fundamentally determines downstream dewatering efficiency, sometimes more significantly than the mechanical specifications of the press itself.

Following conditioning, the sludge enters the gravity drainage section—the first active dewatering zone. Here, the flocculated material sits atop a moving porous belt, allowing free water to drain naturally through the mesh by gravitational force. This passive drainage can remove 30-50% of the water content before any pressure is applied, making it an energy-efficient first step. I’ve observed at several facilities that operators sometimes underestimate the importance of optimizing this zone, focusing instead on the pressure sections.

Next comes the wedge or low-pressure zone, where the sludge begins to experience gentle compression between the upper and lower belts. The configuration creates a wedge-shaped channel that gradually narrows, initiating the mechanical expression of water. The pressure gradient increases progressively to avoid sudden compression that might force small particles through the belt mesh or cause material to squeeze out sideways.

The high-pressure zone represents the core dewatering section of the BFP. Here, the sludge-carrying belts navigate through a series of rollers of decreasing diameter, creating increasing pressure. Some designs incorporate S-shaped paths that induce shear forces as the belts change direction, further enhancing water release. The number, diameter, and arrangement of these rollers vary significantly among different manufacturers and models, with each design claiming specific benefits.

A senior process engineer at a western treatment facility told me during a consultation: “The high-pressure zone design is where manufacturers differentiate themselves. Some optimize for higher cake solids, others for throughput capacity, and still others for specific types of sludge.” This highlights why selecting the right BFP configuration for a specific application requires careful analysis of operational goals and sludge characteristics.

The final stage involves cake discharge and belt washing systems. After passing through the pressure rollers, the dewatered cake separates from the belts at a discharge point, typically falling onto a conveyor or into a collection bin. The belts then pass through high-pressure spray nozzles that remove residual solids before returning to the feed zone. Effective belt cleaning is crucial for maintaining filtration efficiency and extending belt life—a fact I’ve heard emphasized repeatedly by maintenance personnel.

The entire operation relies on precise tension control systems that maintain optimal belt tracking and pressure throughout the process. Modern BFPs employ sophisticated sensors and automated controls to adjust tension, speeds, and washing systems in response to varying feed conditions or performance parameters.

Applications Across Industries: Versatility in Action

The versatility of belt filter press technology extends well beyond its origins in municipal wastewater treatment. While BFPs remain staples in sewage processing facilities, their application has expanded considerably across diverse industrial sectors, each capitalizing on the technology’s fundamental strengths while adapting to specific operational requirements.

Municipal wastewater treatment represents the most visible and widespread application. Treatment plants process primary, secondary, and occasionally tertiary sludges through BFPs to reduce volume and prepare solids for disposal or beneficial reuse. During a recent visit to a mid-sized municipal facility, I observed how operators adjusted polymer dosing and belt speeds to accommodate variations in incoming sludge characteristics—a common challenge as residential and commercial wastewater compositions fluctuate throughout the day and seasonally.

The pulp and paper industry has embraced belt filter presses to handle fibrous sludges containing cellulose, clays, and process chemicals. These operations present unique challenges due to the stringy nature of paper fibers, which can complicate typical dewatering approaches. Specialized BFP designs with enhanced screening capabilities and robust belt materials have emerged to address these industry-specific demands.

Mining operations utilize belt filter presses for mineral processing and tailings management. The abrasive nature of mining slurries necessitates heavy-duty construction and wear-resistant components. A metallurgical engineer working at a copper processing facility explained: “Our belt filter presses handle slurries with high mineral content and variable particle sizes. We’ve modified standard units with reinforced frames and specialized belt materials to withstand the punishing conditions while maintaining consistent performance.”

The food and beverage sector presents another significant application area. Breweries, wineries, dairy processors, and fruit juice manufacturers all generate organic-rich waste streams that require dewatering. These applications often demand food-grade materials and sanitary design considerations. Interestingly, the resulting cake from these operations frequently has value as animal feed or soil amendment, adding an economic incentive beyond mere waste volume reduction.

Chemical manufacturing facilities employ BFPs to recover valuable products and process water while preparing waste streams for disposal. The chemical compatibility of belt materials becomes paramount in these applications, with specialized elastomers and synthetic fabrics designed to withstand corrosive or reactive substances.

The agricultural sector has also found applications for BFPs in managing livestock waste and processing agricultural byproducts. Large dairy and hog operations increasingly turn to mechanical dewatering to manage manure, separating solids that can be composted while reducing the volume of liquid requiring land application or further treatment.

What becomes apparent across these diverse applications is the adaptability of the core belt filter press concept. Manufacturers have developed specialized variations to address the unique challenges of each industry, with customizations in belt materials, roller configurations, pressure profiles, and automation systems. This adaptability explains why belt filter presses have maintained their relevance despite the emergence of alternative dewatering technologies.

PORVOO’s Belt Filter Press Solutions: Engineering Excellence

When examining PORVOO’s approach to belt filter press technology, what stands out immediately is their commitment to addressing longstanding challenges in dewatering operations. Their engineering team has clearly prioritized solving the pain points that facility operators encounter with conventional designs.

The cornerstone of PORVOO’s BFP lineup is their adaptive pressure control system, which automatically responds to variations in sludge consistency—a persistent challenge in wastewater operations. Rather than requiring constant operator intervention, their presses continuously optimize pressure distribution based on real-time monitoring of sludge characteristics. During a demonstration I attended, the system smoothly adjusted to a sudden change in feed concentration without operator input, maintaining consistent cake quality throughout the transition.

PORVOO has incorporated several notable design innovations that differentiate their equipment from standard offerings in the market. Their filter belts feature a proprietary weave pattern that balances water passage with solids retention, addressing the common trade-off between drainage efficiency and filter cake quality. The belt tensioning system employs pneumatic controls with position feedback, achieving more precise and consistent tension than conventional mechanical or hydraulic systems.

Another distinctive feature is their modular construction approach. The chief engineer at PORVOO explained: “We designed the system with expansion and maintenance in mind. Critical components are accessible without requiring complete disassembly, and facilities can add capacity incrementally as their needs grow.” This modularity translates to reduced downtime during maintenance and greater flexibility for facilities with evolving capacity requirements.

The control system deserves special mention for its intuitive interface and comprehensive monitoring capabilities. Unlike many industrial systems with dated interfaces, PORVOO has implemented a touchscreen control panel with graphical process visualization and trend analysis tools. This system stores operational data that operators can analyze to optimize performance and troubleshoot issues—a valuable feature for facilities focusing on continuous improvement.

PORVOO’s commitment to sustainability appears throughout their design philosophy. Their machines incorporate water recycling systems that reduce wash water consumption by up to 40% compared to conventional designs. Energy efficiency measures include variable frequency drives on all motors and gravity-optimized flow paths that minimize pumping requirements.

The polymer mixing and dosing system integrated with their BFPs deserves particular attention. Rather than treating polymer preparation as a separate process, PORVOO has engineered a complete system that precisely controls polymer activation and dosing based on incoming sludge characteristics. This integrated approach allows for more responsive adjustments and typically reduces chemical consumption by 15-25% compared to standalone systems.

For facilities with space constraints, PORVOO offers compact configurations without sacrificing performance—an important consideration for treatment plants in urban areas or indoor industrial settings. One plant manager I spoke with noted: “We were able to replace our aging centrifuges with PORVOO’s compact BFP model in the same footprint, while increasing throughput and reducing power consumption.”

Key Performance Factors to Consider When Evaluating BFPs

Selecting the right belt filter press involves evaluating multiple performance parameters beyond the simple specifications presented in sales literature. My experience reviewing numerous installations has revealed that facility managers often focus too narrowly on throughput capacity while overlooking other critical factors that determine real-world performance.

Hydraulic loading capacity generally receives primary attention during the selection process. This parameter, typically expressed in gallons per hour or cubic meters per hour, indicates the volumetric processing capability of the press. However, solids loading capacity—measured in pounds or kilograms of dry solids per hour—often provides a more meaningful metric for comparing different units. Two presses with identical hydraulic capacity might handle significantly different solids loads depending on their design.

The achievable cake solids content represents another essential performance indicator. This measurement, expressed as a percentage of dry solids in the final dewatered cake, directly impacts disposal costs and downstream processing options. Dr. Elena Mikhailova, an environmental engineering researcher, explained during a recent conference: “The relationship between energy input and incremental improvements in cake dryness follows a diminishing returns curve. Finding the optimal balance point for your specific operation is essential for cost-effective dewatering.”

This table illustrates typical performance ranges for different sludge types:

Polymer consumption represents a significant operational cost often overlooked during equipment selection. Different BFP designs may require varying polymer dosages to achieve similar results. During my assessment of several installations, I found that actual polymer usage often exceeded initial estimates by 15-30%, substantially impacting operational budgets. The most efficient presses incorporate design features that optimize polymer mixing and distribution, maximizing flocculation effectiveness while minimizing chemical consumption.

Wash water requirements constitute another operational consideration with both economic and environmental implications. Modern BFPs incorporate increasingly efficient spray systems and water recovery options to minimize fresh water consumption. A municipal plant supervisor noted during our discussion: “We reduced our wash water consumption by nearly 40% after upgrading to a newer press with optimized spray nozzles and better belt materials. The water savings alone justified a portion of our investment.”

Energy efficiency varies significantly across different models and manufacturers. Power consumption typically ranges from 0.5 to 2.0 kilowatt-hours per cubic meter of sludge processed, with variations based on design, size, and auxiliary equipment requirements. When evaluating energy costs, it’s important to consider the entire dewatering system, including feed pumps, polymer systems, conveyors, and ventilation equipment—not just the press itself.

Operational flexibility deserves careful consideration for facilities with variable input conditions. Some presses perform well within a narrow range of optimal conditions but struggle when feed characteristics fluctuate. Others offer broader operational windows with adaptive controls that maintain performance across varying conditions. This flexibility can prove particularly valuable for municipal facilities dealing with seasonal variations or industrial operations with changing process streams.

Reliability metrics like mean time between failures (MTBF) and maintenance requirements significantly impact the total cost of ownership. Belt life represents a particularly important consideration, as replacement belts constitute a major maintenance expense. Advanced belt materials and optimized tension control systems can extend belt life from months to years, substantially reducing long-term operating costs and downtime.

Maintenance and Optimization Strategies for Extended Service Life

The difference between a belt filter press that delivers years of reliable service and one that becomes a maintenance nightmare often comes down to operational practices rather than initial design. I’ve witnessed identical press models perform drastically differently at separate facilities based solely on maintenance protocols and operator attentiveness.

Regular, systematic belt inspection forms the foundation of any effective maintenance program. Belts should be checked daily for tracking issues, wear patterns, and developing damage. Early detection of minor problems—a small tear or misalignment—can prevent catastrophic failures that result in extended downtime and expensive replacements. An experienced operator at a paper mill shared this insight: “We photograph any unusual wear patterns and keep a digital log. This visual history helps us identify recurring issues and address root causes rather than just symptoms.”

Belt cleaning effectiveness directly impacts both dewatering performance and equipment longevity. Inadequate cleaning leads to blinding—the progressive clogging of belt pores with fine particles—which reduces drainage capacity and increases wear as the press works harder to achieve the same results. Most facilities establish standard belt cleaning protocols, but fewer implement regular testing to verify cleaning effectiveness. A simple visual inspection using strong backlighting can reveal residual fouling that standard observation might miss.

Roller maintenance presents unique challenges, particularly for the smaller-diameter rollers in high-pressure zones that rotate at higher speeds. Bearing failure remains one of the most common causes of unplanned downtime. Forward-thinking facilities implement vibration monitoring on critical rollers to detect early signs of bearing degradation before catastrophic failure occurs. The maintenance supervisor at a large municipal plant told me: “We installed simple vibration sensors on our highest-risk rollers. The system has already paid for itself by giving us advance warning of two potential failures that we addressed during scheduled maintenance periods.”

The polymer conditioning system demands careful attention within the maintenance program. Inconsistent polymer preparation leads directly to variable dewatering performance. Regular calibration of metering pumps, cleaning of mixing chambers, and verification of polymer activation effectiveness should be incorporated into routine maintenance schedules. One often-overlooked aspect involves the water used for polymer preparation—changes in supply water temperature or chemistry can significantly affect polymer performance without any obvious equipment malfunction.

When optimizing a belt filter press operation, many facilities focus exclusively on mechanical aspects while overlooking process chemistry. The relationship between sludge characteristics, polymer selection, and mechanical settings creates a complex optimization challenge. Some facilities benefit from periodic jar testing to reassess polymer selection and dosage as sludge characteristics evolve. During a consulting project at a food processing plant, we discovered that their polymer, selected years earlier, was no longer optimal for their current waste stream. A simple switch to a different product reduced chemical costs by 22% while improving cake dryness.

Operator training represents perhaps the most valuable yet underutilized optimization strategy. The most sophisticated BFP will underperform in the hands of inadequately trained personnel. Beyond basic operation, operators should understand the scientific principles behind dewatering, recognize subtle indicators of developing problems, and know how to make incremental adjustments to maintain optimal performance. Several manufacturers, including PORVOO, offer advanced operator training that goes beyond basic operation to include troubleshooting and optimization techniques.

Preventive maintenance scheduling software has transformed maintenance practices at leading facilities. These systems track component lifespans, predict maintenance needs based on operating hours and conditions, and ensure critical tasks aren’t overlooked during shift changes or personnel transitions. The investment in such systems typically returns dividends through reduced emergency repairs and extended equipment life.

Comparative Analysis: BFPs vs. Alternative Dewatering Technologies

The dewatering landscape has evolved significantly over recent decades, with several technologies competing for prominence in various applications. Understanding how belt filter presses compare to these alternatives provides valuable context for technology selection decisions.

Centrifuges represent the most direct competitor to belt filter presses in many applications. These high-speed machines use centrifugal force to separate solids from liquids in a continuous process. Their enclosed design offers advantages for odor control and reduced operator exposure to process materials. However, this comes with trade-offs in energy consumption and maintenance complexity. During an equipment evaluation for a municipal upgrade project, we found that centrifuges consumed approximately 2-3 times more energy than comparable BFPs for the same throughput capacity.

A wastewater treatment specialist I consulted with noted: “Centrifuges shine in applications requiring higher cake solids or where space is at an absolute premium. But their higher energy costs, more specialized maintenance requirements, and greater sensitivity to abrasive materials make them less suitable for many standard applications.”

Screw presses have gained popularity, particularly in certain industrial applications and smaller-scale operations. These devices use a slowly rotating screw within a cylindrical screen to gradually compress sludge while expressing water through the screen openings. Their low speed operation translates to reduced energy requirements and minimal wear compared to high-speed centrifuges. However, they typically achieve lower throughput capacities than either centrifuges or belt filter presses of comparable size.

This comparison highlights key differences between technologies:

Chamber filter presses, though older technology, maintain relevance in specific applications requiring very high cake solids. These batch-operated devices use high pressure to force water through filter media, creating very dry cakes. However, their batch operation creates process bottlenecks and high labor requirements that limit their appeal in continuous high-volume applications.

Vacuum filters, once common in industrial applications, have largely been supplanted by more efficient technologies. Their high energy consumption, limited cake dryness, and substantial maintenance requirements have restricted their current use to specialized applications where their particular characteristics offer specific advantages.

The selection process should emphasize alignment between technology characteristics and specific operational priorities. An environmental engineer specializing in dewatering systems explained: “There’s no universally superior technology. The optimal choice depends on weighing factors like available space, energy costs, labor availability, automation preferences, and desired cake characteristics for the specific application.”

Recent advances in belt filter press design have addressed some historical limitations, narrowing the performance gap with competing technologies. Improvements in belt materials have extended operational life while enhancing dewatering performance. Automation systems now offer sophisticated controls that reduce operator intervention requirements. Enhanced pressure zone designs achieve higher cake solids content than earlier generations of the technology.

Beyond performance specifications, operational factors like ease of maintenance, spare parts availability, and local service support often prove decisive in technology selection. A municipal plant manager shared this perspective: “We selected belt filter presses despite slightly lower cake solids because our maintenance team was familiar with the technology, and we had reliable local service support. The best technology on paper becomes the worst choice if you can’t get it serviced promptly when issues arise.”

Future Trends and Innovations in Dewatering Technology

The dewatering technology landscape continues to evolve, with significant innovations emerging in response to changing operational priorities and environmental considerations. Several clear trends are reshaping the future of belt filter press technology and its applications.

Advanced automation and control systems represent perhaps the most transformative development in recent years. Modern BFPs increasingly incorporate artificial intelligence and machine learning algorithms that continuously optimize performance based on feed characteristics and desired outcomes. During a recent technology demonstration, I witnessed a system that used real-time analytics to automatically adjust belt speeds, tensions, and polymer dosing—achieving consistent cake quality despite significant variations in input conditions. This level of adaptive control reduces operator intervention while improving overall efficiency.

Smart maintenance systems with predictive capabilities are transforming how facilities manage their equipment. Rather than relying on scheduled maintenance or reacting to failures, these systems use sensor arrays to monitor critical parameters like vibration signatures, motor current draw, and pressure differentials. The data feeds predictive models that can identify developing problems before they cause operational disruptions. An industry consultant noted: “The facilities implementing these systems are seeing maintenance costs decrease by 15-30% while simultaneously reducing unplanned downtime by over 40%.”

Materials science innovations are yielding new belt constructions with enhanced performance characteristics. Advanced composite materials resist chemical degradation while maintaining optimal porosity through thousands of operational hours. Specialized surface treatments reduce material adhesion, addressing cake release issues that plagued earlier designs. Some manufacturers now offer application-specific belts engineered for particular waste streams—a welcome advancement from the one-size-fits-all approach of previous generations.

Energy efficiency has become a primary focus as facilities face rising power costs and environmental pressures. Next-generation belt filter presses incorporate energy recovery systems, optimized drive technologies, and improved mechanical designs that significantly reduce power consumption. Some designs now include regenerative drive systems that recover energy during deceleration phases, while others use gravity more effectively to reduce pumping requirements.

The integration of dewatering systems with upstream and downstream processes represents another important trend. Rather than treating the BFP as a standalone unit, forward-thinking facilities are implementing holistic process management systems that coordinate conditioning, dewatering, and solids handling as an integrated system. This approach optimizes overall performance rather than sub-optimizing individual components. During a recent plant upgrade project, we found that this integrated approach improved overall efficiency by nearly 25% compared to optimizing each process step independently.

Environmental considerations are driving innovations in wash water reduction and reclamation. Advanced spray nozzle designs and belt materials that release solids more readily have significantly reduced water requirements. Closed-loop wash water recovery systems now capture, treat, and reuse water that previously entered the return flow stream, reducing both water consumption and treatment burden.

Compact designs for space-constrained facilities represent a response to the historical footprint disadvantage of belt filter presses compared to centrifuges. New configurations with vertical arrangements and optimized layouts achieve higher throughput capacity per square foot of floor space—an important consideration for facilities in urban areas or those looking to increase capacity within existing buildings. An engineer at a recent water industry conference shared designs for a novel vertical BFP arrangement that reduced footprint requirements by over 40% compared to conventional layouts.

As regulatory requirements for biosolids management become more stringent, BFP manufacturers are developing enhanced pathogen reduction capabilities. Some newer designs incorporate pasteurization sections that use residual heat or external energy sources to achieve Class A biosolids classification—expanding beneficial reuse options for the dewatered material.

The future may also bring hybrid technologies that combine the strengths of different dewatering approaches. Research teams are exploring combinations like initial belt press dewatering followed by brief thermal drying, or screw press finishing stages after belt press dewatering. These hybrid approaches aim to optimize energy usage while achieving higher dry solids content than any single technology could deliver efficiently.

Looking further ahead, the integration of dewatering with resource recovery represents perhaps the most significant paradigm shift. Rather than viewing dewatering as merely a volume reduction step, emerging approaches treat it as part of a resource extraction process—recovering not just water but nutrients, energy precursors, and other valuable components from waste streams. This perspective is reshaping how we conceptualize and design dewatering systems, including belt filter presses, for the circular economy of the future.

Frequently Asked Questions about Belt Filter Press (BFP)

Q: What is a Belt Filter Press (BFP) and how does it work?
A: A Belt Filter Press (BFP) is a device used for sludge dewatering by combining gravity drainage and mechanical pressure. It operates in three primary zones: a gravity zone, a medium pressure (wedge) zone, and a high pressure (shear) zone. In these zones, the sludge is compressed between belts and rollers, gradually increasing the pressure to remove water, resulting in a dewatered cake. The process is continuous and automated, making it efficient for both primary and waste activated sludges.

Q: What types of Belt Filter Presses are available?
A: There are primarily two types of Belt Filter Presses: conventional and high-pressure. Conventional BFPs use two belts and focus on gravity dewatering, while high-pressure BFPs apply greater force with additional rollers, achieving higher cake dryness. Some models also include three belts, allowing for independent operation of the gravity and pressure zones.

Q: What are the advantages of using a Belt Filter Press?
A: The advantages of BFPs include:

• Continuous and automated operation
• Low power consumption
• Low maintenance costs
• High solids capture rate
• Compact design
• Wide range of applications
  They are ideal for sludge dewatering due to their efficiency and cost-effectiveness.

Q: How do you optimize the performance of a Belt Filter Press?
A: Optimizing a Belt Filter Press involves controlling several parameters:

• Solids loading rate
• Hydraulic loading rate
• Polymer type and dosage
• Belt speed and tension
• Feed solids type and age
  Adjusting these parameters based on the sludge characteristics ensures optimal dewatering performance.

Q: What are common issues with Belt Filter Presses and how are they addressed?
A: Common issues with BFPs include belt blinding, low cake dryness, and solids in the filtrate. These are typically resolved by adjusting polymer dosage, belt speed, and ensuring proper belt cleaning. Regular maintenance, such as belt washing and tensioning, is crucial to prevent these problems.

Q: How are Belt Filter Presses maintained?
A: Maintenance of Belt Filter Presses involves:

• Regular belt cleaning with water sprays to prevent blinding
• Adjusting and maintaining belt tension for optimal performance
• Ensuring proper hydraulic or pneumatic power for belt operation
  Regular maintenance is essential to extend the lifespan of the equipment and ensure consistent performance.
