Industrial Dust / Wastewater Treatment Solutions
Intelligent Sewage Treatment System
The Intelligent Sewage Treatment System represents a breakthrough in industrial wastewater management, specifically engineered for ceramic and stone manufacturing facilities. This tower-based sedimentation system utilizes proprietary vertical technology that eliminates traditional pool sedimentation methods, offering superior performance in a compact footprint. The fully automated system integrates precipitation, concentration, press filtering, and slag removal into a unified solution, ensuring complete sewage purification and water recycling capabilities.
How the System Works
Our tower sewage treatment system operates through an intelligent, closed-loop process that maximizes efficiency while minimizing environmental impact. The system begins with sewage collection in the drainage ditch, where wastewater is pumped through multiple treatment stages including the purification tower, sewage tower, and pressure filter machines. Advanced stirring mechanisms and mud pumps work in tandem with the central control system to manage the entire treatment cycle, from initial screening to final water storage in the purification pool. The automated medicine feeding device ensures precise flocculant dosing throughout the process, optimizing sedimentation and clarification results.

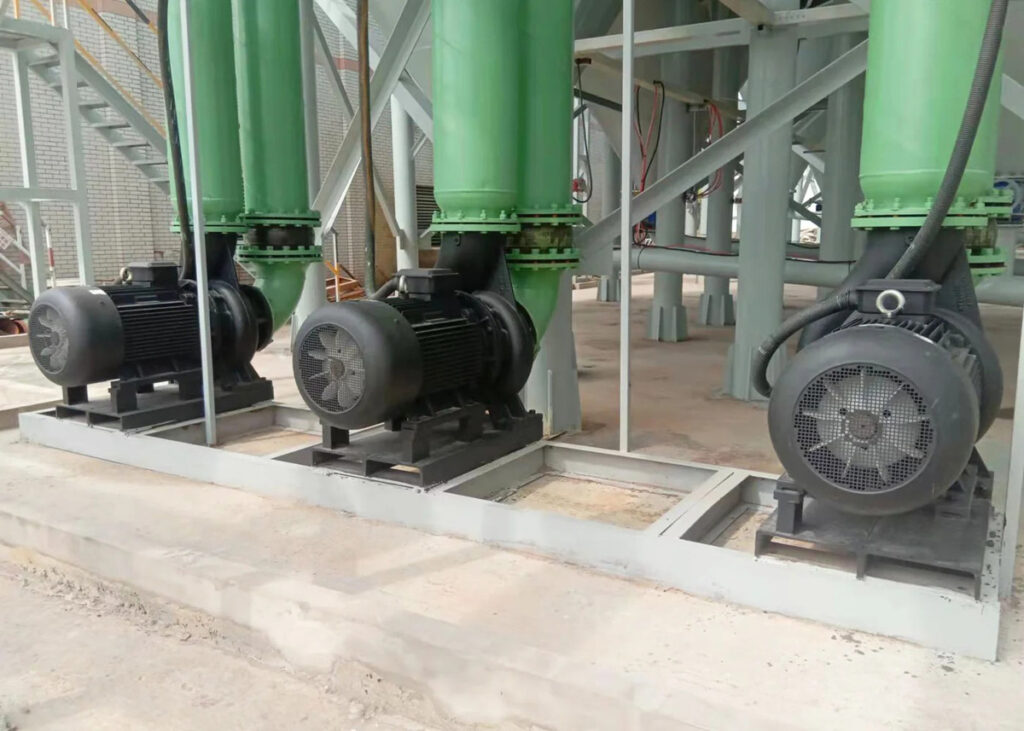

Sewage Pumping Equipment
Our 50KQL submersible slurry pump series delivers exceptional performance across diverse operating conditions. These pumps feature variable capacity options ranging from 7-15 m³/h with corresponding head capabilities from 9-52 meters, ensuring optimal flow rates for your specific requirements. All models operate at a consistent 2960 rpm with efficiency ratings between 48-66%, powered by motors ranging from 0.75kW to 5.5kW. The compact NPSH rating of 2.3 meters and lightweight construction (38-105 kg depending on model) facilitate easy installation and maintenance.
| Type | Capacity (m³/h) | Capacity (l/s) | Head (m) | Speed (r/min) | Efficiency (%) | Power (kW) | NPSH (m) | Weight (kg) |
| 50KQL/W11-10-0.75/2 | 8 | 2.22 | 11 | 2960 | 66 | 0.75 | 2.3 | 38 |
| 11 | 3.05 | 10 | ||||||
| 13.2 | 3.67 | 9 | ||||||
| 50KQL/W12.5-12.5-1.1/2 | 8.8 | 2.44 | 13.6 | 2960 | 66.2 | 1.1 | 2.3 | 40 |
| 12.5 | 3.47 | 12.5 | ||||||
| 15 | 4.17 | 11.3 | ||||||
| 50KQL/W11-16-1.1/2 | 8 | 2.22 | 17 | 2960 | 61 | 1.1 | 2.3 | 40 |
| 11 | 3.05 | 16 | ||||||
| 13.2 | 3.67 | 14 | ||||||
| 50KQL/W12.5-20-1.5/2 | 8.8 | 2.44 | 21.5 | 2960 | 62.1 | 1.5 | 2.3 | 48 |
| 12.5 | 3.47 | 20 | ||||||
| 15 | 4.17 | 17.8 | ||||||
| 50KQL/W10-27-1.5/2 | 7 | 1.94 | 28.35 | 2960 | 55 | 1.5 | 2.3 | 51 |
| 10 | 2.78 | 27 | ||||||
| 11 | 3.06 | 26.2 | ||||||
| 50KQL/W12.5-32-2.2/2 | 8.8 | 2.43 | 33.6 | 2960 | 56 | 2.2 | 2.3 | 59 |
| 12.5 | 3.47 | 32 | ||||||
| 13.8 | 3.82 | 30 | ||||||
| 50KQL/W10-36-3/2 | 7.3 | 2.02 | 38 | 2960 | 48 | 3 | 2.3 | 65 |
| 10.4 | 2.89 | 36 | ||||||
| 12.5 | 3.47 | 33 | ||||||
| 50KQL/W12-44-4/2 | 8.3 | 2.31 | 45.8 | 2960 | 49 | 4 | 2.3 | 80 |
| 11.7 | 3.25 | 44 | ||||||
| 14 | 3.89 | 42 | ||||||
| 50KQL/W12.5-50-5.5/2 | 8.8 | 2.43 | 52 | 2960 | 49.5 | 5.5 | 2.3 | 105 |
| 12.5 | 3.47 | 50 | ||||||
| 15 | 4.17 | 48 |
Square Vibrating Screen Machine
The square vibrating screen system provides robust pre-filtration for large particle removal. Available in eight size configurations from 600mm to 2500mm type designations, these units process a uniform capacity of 1500 m³/h regardless of size. The screening mesh ranges from 2-400 mesh, accommodating maximum feed particle sizes from less than 20mm to less than 60mm depending on the model. Power requirements scale efficiently from 0.37kW for smaller units to 3kW for the largest configurations, all while maintaining a lightweight design of 1-10 tons.
| Type (mm) | 600 | 800 | 1000 | 1200 | 1500 | 1800 | 2000 | 2500 |
| Area (m²) | 0.23 | 0.46 | 0.68 | 0.95 | 1.54 | 2.41 | 2.95 | 4.34 |
| Size (mm) | 2-400 (mesh) | |||||||
| Capacity (m³/h) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Weight (T) | 1 – 10 | |||||||
| Maximum feed particle size (mm) | <20 | <30 | <30 | <30 | <50 | <50 | <60 | <60 |
| Unitpower (kW) | 0.37 | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 3 |
Hose Pump Systems
Our precision hose pump collection offers reliable delivery for chemical dosing and fluid transfer applications. The range spans from compact 12mm units with 121mm outer diameter to heavy-duty 20mm models featuring 219mm outer diameter. Delivery volume capabilities scale proportionally from 0.5-0.8 m³/h in the smallest configuration to 3-6 m³/h in the largest units. Standardized power ratings of either 2.2kW or 3kW ensure energy-efficient operation across all models.
| Type (mm) | 12 | 14 | 16 | 18 | 20 |
|---|---|---|---|---|---|
| Outer diameter (mm) | 121 | 140 | 165 | 180 | 219 |
| Delivery volume (m³/h) | 0.5-0.8 | 0.8-1 | 1-2 | 2-4 | 3-6 |
| Power (kw) | 2.2 | 2.2 | 3 | 3 | 3 |
Spiral Sand Removal System
The spiral sand pumping machine provides efficient removal of settled particles and concentrated sludge. Five model variants (820mm through 1530mm) feature processing areas from 1.5m² to 4.5m², with corresponding dimensional footprints optimized for different facility layouts. Processing capacities range dramatically from 20-30 m³/h to 100-120 m³/h, supported by unit power ratings between 0.75kW and 3kW. The lightweight construction ranges from 0.8 to 3.2 tons, with all models maintaining a maximum feed particle size specification below 10mm.
| Type (mm) | 820 | 920 | 1020 | 1225 | 1530 |
|---|---|---|---|---|---|
| Area (m²) | 1.5 | 1.8 | 2 | 3 | 4.5 |
| Size (mm) | 2300x1000x750 | 2300x1200x750 | 2300x1300x750 | 2300x1500x750 | 2300x1800x750 |
| Capacity (m³/h) | 45056 | 45219 | 20-30 | 50-80 | 100-120 |
| Weight (T) | 0.8 | 1.2 | 1.6 | 2.1 | 3.2 |
| Maximum feed particle size (mm) | <10 | <10 | <10 | <10 | <10 |
| Unitpower (kW) | 0.75 | 1.1 | 1.5 | 2.2 | 3 |
Automated Chemical Dosing Systems
Three-Chamber PAM Dosing Device
The automated polyacrylamide (PAM) dosing system ensures consistent flocculant preparation at optimal 0.1-0.3% concentrations. The three-chamber design features dedicated preparation, aging, and storage tanks, each equipped with precision agitators for complete solution homogenization. An integrated liquid level alarm system prevents treatment interruptions by triggering automatic shutdowns when storage levels fall below threshold, protecting system integrity. The dual metering pump configuration (primary and backup) enables continuous operation during maintenance cycles without process disruption.
PAC Automatic Dispensing Unit
Our polyaluminum chloride (PAC) dispensing device represents a fully integrated solution for coagulant management. The intelligent system encompasses water supply integration, automated dry powder dosing, and continuous dissolution with aging optimization, all managed through centralized controls. The modular design incorporates storage tanks, dissolution vessels, precision mixers, metering pumps, and comprehensive piping with filtration, creating a complete turnkey installation. Safety features including overflow protection, ventilation systems, and redundant valve controls ensure reliable, unattended operation.
Key Advantages
Space-Efficient Design: Vertical tower architecture reduces installation footprint by up to 70% compared to traditional horizontal settling pools
Intelligent Automation: Centralized control system minimizes labor requirements while maximizing treatment consistency and reliability
High Purification Rates: Advanced sedimentation technology achieves superior water clarity for immediate recycling back to production processes
Flexible Scalability: Modular component design accommodates facilities of all sizes with customizable capacity configurations
Environmental Compliance: Closed-loop piping eliminates atmospheric exposure, maintaining clean site conditions while meeting regulatory standards
